Wiring Block with Leg 50 Pair (ar-wbl-50)

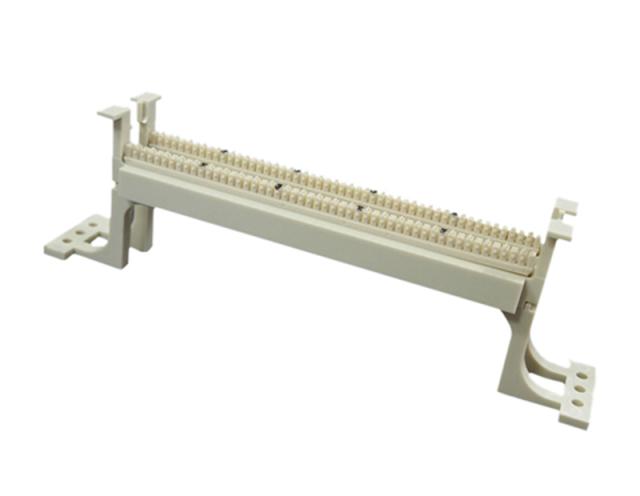

Variant image

Wiring Block with Leg 50 Pair (ar-wbl-50)

https://aromnetworks.com/web/image/product.template/4040/image_1920?unique=c5b285b

VOLTAGE RATING: 125 VAC RMSCURRENT RATING: 1.5 AMPCONTACT RESISTANCE: 100 MILLIOHMS MAXINSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDCDIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN , BASE MATERIAL: PC UL94V-0CABLE BINDER MATERIAL: PC UL94V-0LEG MATERIAL: PC UL94V-0IDC HOUSING AND PLATE: PC UL94V-0TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mmWIRE: AWG 24~26

1.00 $ 1.0 CAD 1.00 $

1.00 $

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Electrical of Wiring Block with Leg 50 Pair

    • VOLTAGE RATING: 125 VAC RMS

    •  CURRENT RATING: 1.5 AMP

    • CONTACT RESISTANCE: 100 MILLIOHMS MAX

    •  INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

    • DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN

     Mechanical of Wiring Block with Leg 50 Pair

    • BASE MATERIAL: PC UL94V-0

    •  CABLE BINDER MATERIAL: PC UL94V-0

    • LEG MATERIAL: PC UL94V-0

    •  IDC HOUSING AND PLATE: PC UL94V-0

    •  TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

    • WIRE: AWG 24~26
