  2. Wiring Block Rack mounted 100 Pair (ar-wbr-100)
Wiring Block Rack mounted 100 Pair (ar-wbr-100)

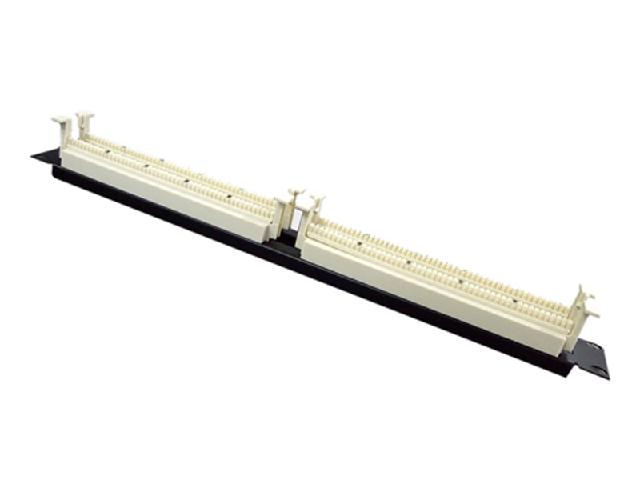

Variant image

Wiring Block Rack mounted 100 Pair (ar-wbr-100)

https://aromnetworks.com/web/image/product.template/4041/image_1920?unique=59eeec5

VOLTAGE RATING: 125 VAC RMSCURRENT RATING: 1.5 AMPCONTACT RESISTANCE: 100 MILLIOHMS MAXINSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDCDIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN , PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLORBASE MATERIAL: PC UL94V-0CABLE BINDER MATERIAL: PC UL94V-0LEG MATERIAL: PC UL94V-0IDC HOUSING AND PLATE: PC UL94V-0TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mmWIRE: AWG 24~26

1.00 $ 1.0 CAD 1.00 $

1.00 $

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Electrical of Wiring Block Rack mounted 100 Pair

    • VOLTAGE RATING: 125 VAC RMS

    • CURRENT RATING: 1.5 AMP

    • CONTACT RESISTANCE: 100 MILLIOHMS MAX

    •  INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

    • DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN

     Mechanical of Wiring Block Rack mounted 100 Pair

    •  PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLOR

    • BASE MATERIAL: PC UL94V-0

    • CABLE BINDER MATERIAL: PC UL94V-0

    •  LEG MATERIAL: PC UL94V-0

    • IDC HOUSING AND PLATE: PC UL94V-0

    • TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

    • WIRE: AWG 24~26
