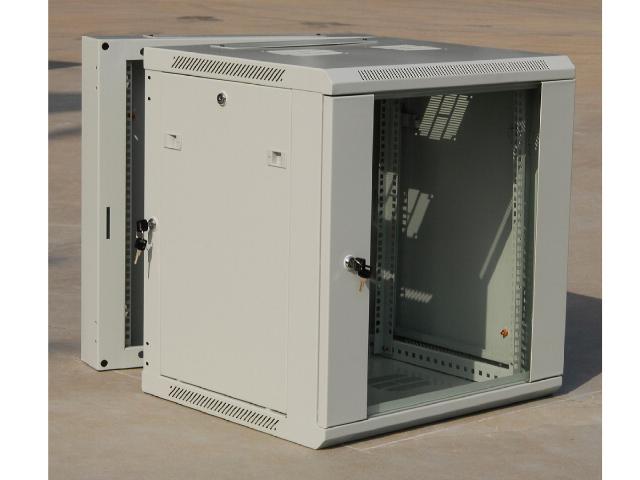

Wall mounted Cabinet double section (ar-dwm-d)

Feature of Wall mounted Cabinet double section

• Welded main frame, stable and strong structure;

• Compatible with 19" standard network equipments;

• Wall mounting installation with backboard or standing with castor ;

• Toughened glass front door with over 180 turning degree;

• Removable side panel, easy to install and maintain (lock optional);

• Cable entry on the top cover and bottom panel with knock-out plate, optional brush panel;

• L-shaped mounting profile, easy to adjustable on the mounting rail;

• Fan cutout on the top cover, easy to install fan;

Standard of Wall mounted Cabinet double section

• Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 Part 7, GB/T3047.2-92 Standard;

Material of Wall mounted Cabinet double section

• SPCC quality cold rolled steel? Thickness: Mounting profile: 1.5mm; other: 1.2mm;

Loading Capacity of Wall mounted Cabinet double section

• Static loading: 60kg

Surface finish of Wall mounted Cabinet double section

• Degreasing, pickling, phosphoric, powder coated;
