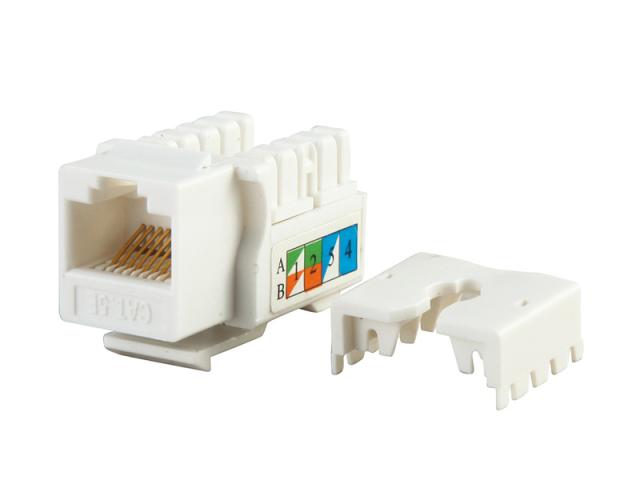

UTP Cat.5e Keystone Jack 90 degree (ar-kj-c505)
PCB material: FR-4 T=1.2mmIDC LIFE: 200 TIMES MINInserting Duration: 750 times.IDC clips: Tinned phosphor bronze pins.IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATINGConnecting: RJ45 Port for UTP Patch Cord and the IDC for UTP horizontal cabling.Fitting for Cat.6 Cabling system, can also be used in Cat.6 and Cat.5e cabling system.According to the standard of ISO/IEC 11801:2002 Class E&ANSI/TIA/EIA/56B2-1 Cat.6A standard.
Product Features of UTP Cat.5e Keystone Jack 90 degree
Product type | Cat.5 UTP |
Transmit capacity | 100MHz |
Wire Gauge Supported | 22-26AWG |
Housing material | PC |
Punching duration | 250times |
RJ45 jack life | 750times |
RJ45 contact material | Phosphor bronze |
Termination type | Tool |
Thickness of the pin | 3μ/6μ/15μ/30μ/50μ |
Wiring scheme | T568A&T568B |
Certification | CE,UL,RoHs,ETL |
Warranty | 25 years |
Technique Characteristics of UTP Cat.5e Keystone Jack 90 degree
PCB material: FR-4 T=1.2mm
IDC LIFE: 200 TIMES MIN
Inserting Duration: 750 times.
IDC clips: Tinned phosphor bronze pins.
IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING
Connecting: RJ45 Port for UTP Patch Cord and the IDC for UTP horizontal cabling.
Fitting for Cat.6 Cabling system, can also be used in Cat.6 and Cat.5e cabling system.
According to the standard of ISO/IEC 11801:2002 Class E&ANSI/TIA/EIA/56B2-1 Cat.6A standard.
