Unitube Non-metallic Non-armmored Cable (argyfty)
Good mechanical and temperature performanceHigh strength looes tube that is hydrolysis resistantSpecial tube filling compound ensure a critical protection of fiberCrush resistance and flexibilityThe following measures are taken to ensure the cable watertight:Single Fiber Reinforced Plastic as the central strength memberLoose tube filling compound100% cable core filling
Description of Unitube Non-metallic Non-armmored Cable

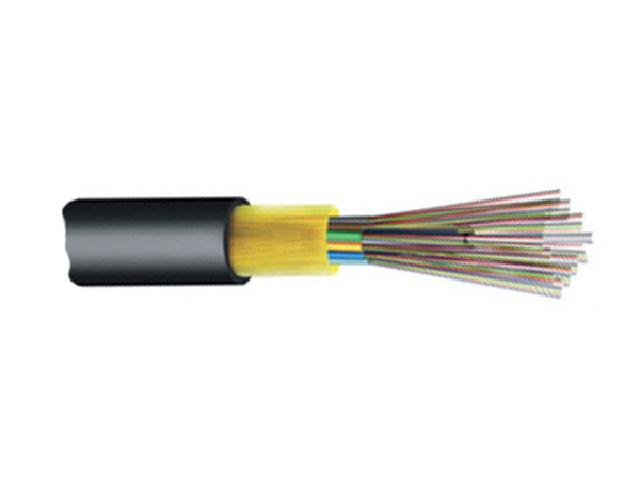

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
Characteristics of Unitube Non-metallic Non-armmored Cable
- Good mechanical and temperature performance
- High strength looes tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
Standards of Unitube Non-metallic Non-armmored Cable
GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics of Unitube Non-metallic Non-armmored Cable
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters of Unitube Non-metallic Non-armmored Cable
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
| GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 6 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 5 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 4 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 |
