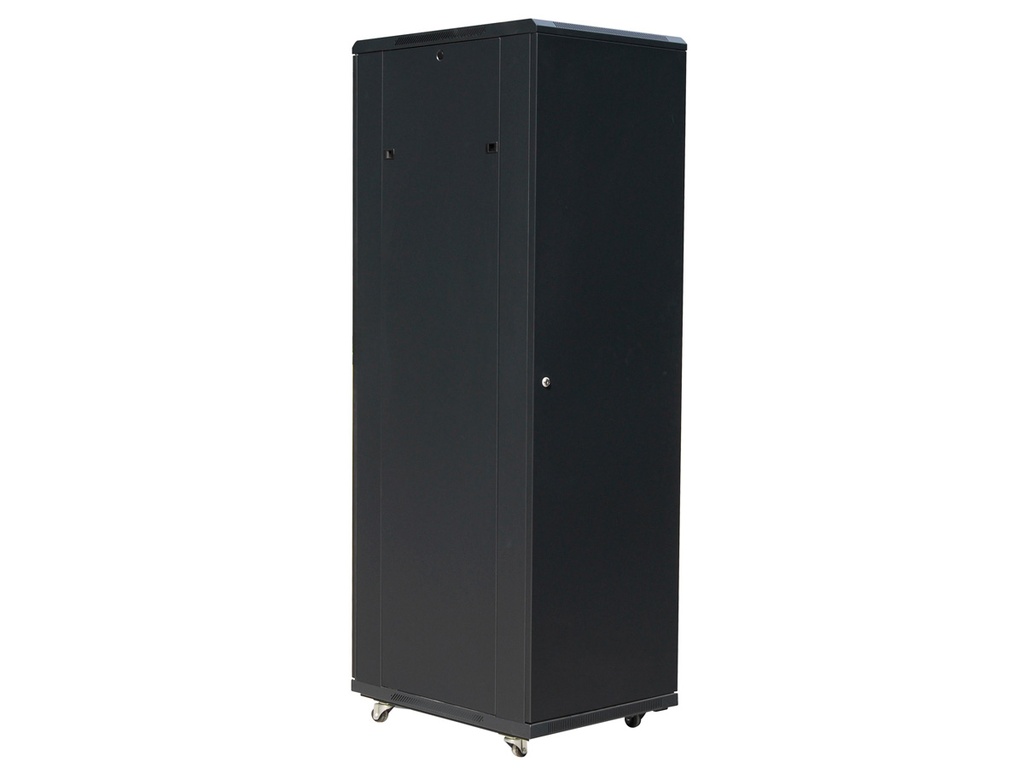

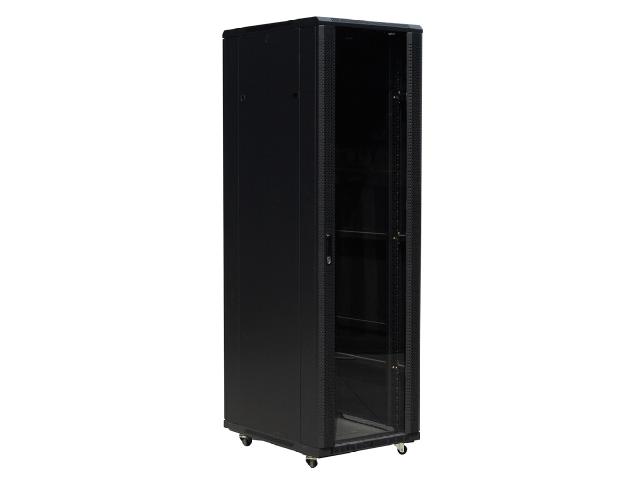

Standing Network Cabinet (ar-sd-a-2)

Feature of Standing Network Cabinet

•  Exquisite design with precise measurement and craftsmanship；

• SPCC bending main frame, can be flat packing, easy to install;

•  Toughened glass front door with over 180 turning degree; arc vented door border;

• Metal steel or hexagonal perforated rear door with little round lock, optional other lock;

•  Removable side panel with latch, easy to install, optional lock;

•  Adjustable feet and castors with braked are available simultaneously;

•  Cable entry on the top, adjustable cable entrance at the bottom with panel;

•  Advanced handle locks for front door, optional other lock;

•  S-shaped mounting profile, free to move forward and backward;

•  Efficient and reliable cabinet connection by baying kit;

•  Earthling system kit on the side panel, front door and rear door;

•  Optional plinth to fix cabinet on the floor; under base cable entry;

• Disassembled packing(modular packaging), about 40% of assembled volume;

Standard of Standing Network Cabinet

• Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491,PART7, ETSI Standard;

Material of Standing Network Cabinet

• SPCC quality cold rolled steel

• Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other 1.2mm;

Loading Capacity of Standing Network Cabinet

•  Static loading: 800kg (on the adjustable feet)

Degree of protection of Standing Network Cabinet

•  IP20

Surface finish of Standing Network Cabinet

•  Degreasing, Pickling, Phosphating, Powder Coated;
