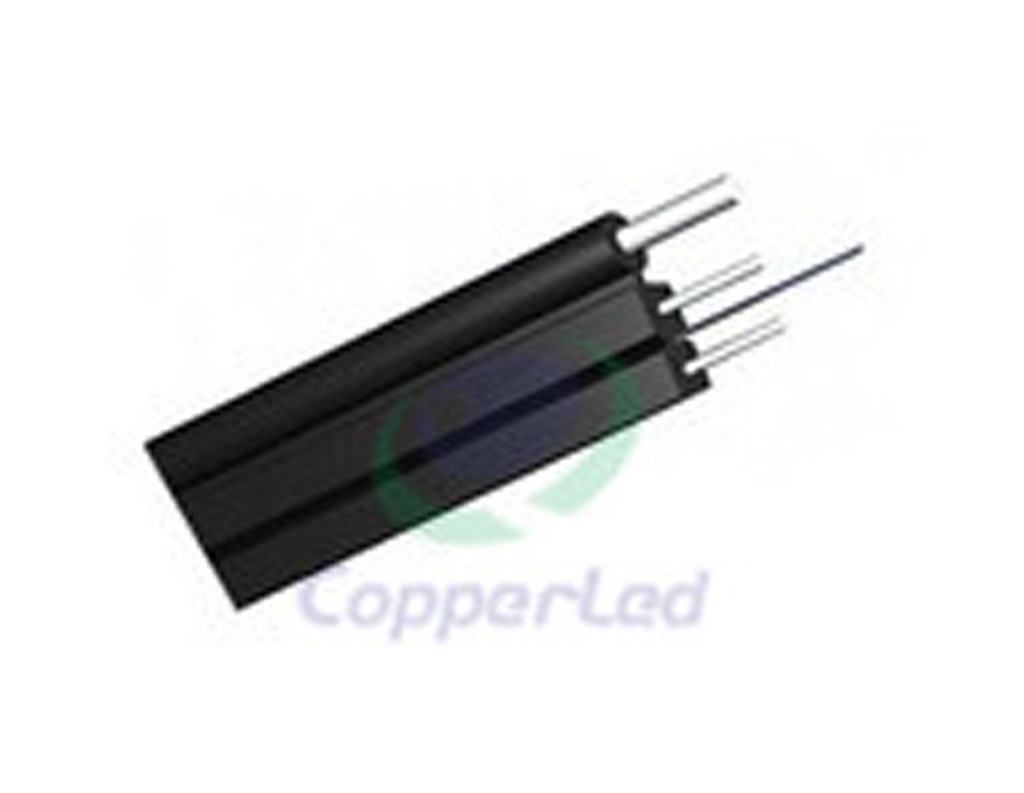

FTTH Drop Cable (ar-ftth-dc00-1)
Variant image

FTTH Drop Cable (ar-ftth-dc00-1)

https://aromnetworks.com/web/image/product.template/3994/image_1920?unique=512f319

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.Simple structure, light weight and high practicability.Novel flute design, easily strip and splice, simplify the installation and maintenance.Low smoke, zero halogen and flame retardant sheath.

1.00 $ 1.0 CAD 1.00 $

1.00 $

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Description of FTTH Drop Cable

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.


    Characteristics of FTTH Drop Cable

    • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

    • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

    • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.

    • Simple structure, light weight and high practicability.

    • Novel flute design, easily strip and splice, simplify the installation and maintenance.

    • Low smoke, zero halogen and flame retardant sheath.


    Optical Characteristics of FTTH Drop Cable


    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20℃)

    @850nm



    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm



    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.36 dB/km

    ≤0.40 dB/km



    @1550nm

    ≤0.22 dB/km

    ≤0.23dB/km



    Bandwidth (Class A)

    @850nm



    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm



    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture



    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength λcc

    ≤1260nm

    ≤1480nm




    Technical Parameters of FTTH Drop Cable

    ber Count

    Cable Diameter
    mm

    Cable Weight
    kg/km

    Tensile Strength
    Long/Short Term
    N

    Crush Resistance
    Long/Short Term
    N/100mm

    Bending Radius
    Static
    /Dynamic
    mm

    1

    (2.0±0.2)×(5.0±0.2)

    20

    60/120

    300/1000

    15/30

    2

    (2.0±0.2)×(5.0±0.2)

    20

    60/120

    300/1000

    15/30

    1

    (2.0±0.2)×(5.6±0.2)

    21

    60/120

    300/1000

    15/30

    4

    (2.0±0.2)×(5.6±0.2)

    22

    60/120

    300/1000

    15/30

    Storage/Operating Temperature : -20℃to + 60℃
