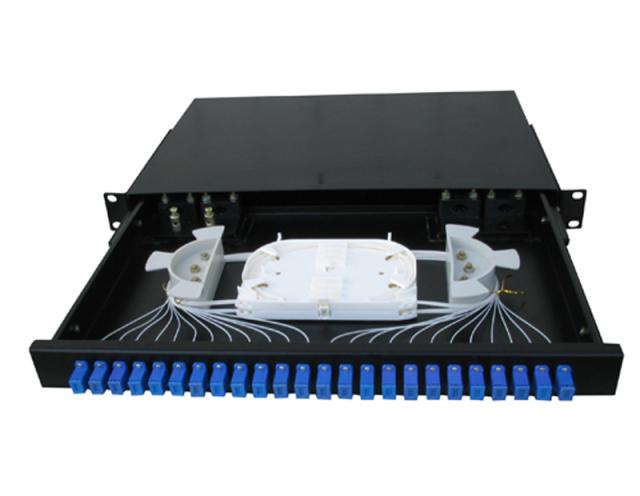

FO Patch Panel SC Type 24Port 19 (ar-fprd-24)

Application of FO Patch Panel SC Type 24Port 19

The product can be used on the terminal of the optical cables,different types and structures,the diameter of which are within 20mm tray.

Structural Features of FO Patch Panel SC Type 24Port 19

• All property indexes are in accordance with national YD/T814-1996 standard

  The body make use of cold rolling steel,and the surface use the technique of dim

  plastic.strong adhesive force,artistic and durable.

• Distinctive design of 4 cable enrance and fiber exit of 24 cores duplex SC

  adapters.

• Cable entrance are sealed with oil resistance NBR to increase the flexibility.user

  can choose to prick the entrance.

• Overlapping fiber splice tray and separate insulation earthing unit make the

  disposition of the cores ,expanding the capacity and cable-earthen

• flexible,convinient and safe.

Main Technical Specifications of FO Patch Panel SC Type 24Port 19

• External size: 480*250*1U

• Winding radius ≥40mm

• Fiber capacity: 48cores

• installing: rack mounted

•  Working temperature：－25℃～＋45℃

• Atmosphere pressure：70～106Kpa

• Insulated Resistance：2×10MΩ/500V（DC）
