CLOPCC00 (aropcc00)
Good flexibility and mechanical propertiesOpto and electricity integrated, fully save pipeline resourcesElectric and optical cable maintain relatively independent structure, easy to import,export and link when installationElectricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costsLarger operating temperature rangeLarger construction temperature rangeCable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission , Perfect design for transmission lines, highly effect for electricity saving.Opto and electricity integrated, conveys electric energy and information at the same time, and keep monitoring wire linesOptical fiber compounded in the wire, preventing fiber broken and split accidents by ground lightningPreventing cable suffered corrosion, ruinning or fiber broken accidents caused by field strengAdditional load brings no hidden danger for original lines , Telecommunications networkConstruction of communication base stations in villages, remote areas in cities and townsResidential areas and buildings FTTHSecurity monitoring projectOthers occasion which information together with electric power at the same time
Description of CLOPCC00

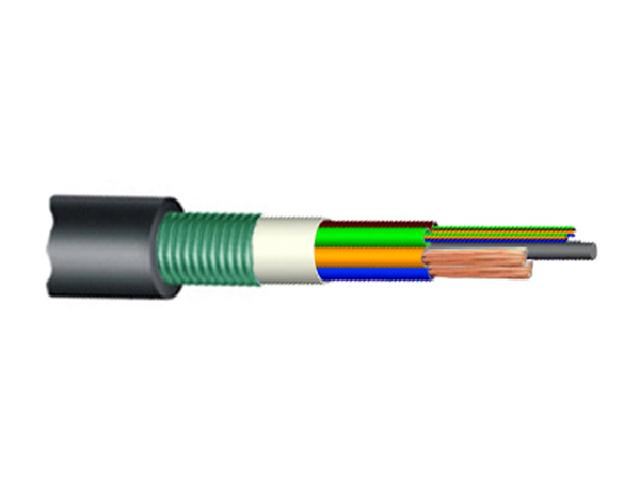

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Characteristics of CLOPCC00
Good flexibility and mechanical properties
Opto and electricity integrated, fully save pipeline resources
Electric and optical cable maintain relatively independent structure, easy to import,export and link when installation
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs
Larger operating temperature range
Larger construction temperature range
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission
Technology advantages of CLOPCC00
Perfect design for transmission lines, highly effect for electricity saving.
Opto and electricity integrated, conveys electric energy and information at the same time, and keep monitoring wire lines
Optical fiber compounded in the wire, preventing fiber broken and split accidents by ground lightning
Preventing cable suffered corrosion, ruinning or fiber broken accidents caused by field streng
Additional load brings no hidden danger for original lines
Application Fields of CLOPCC00
Telecommunications network
Construction of communication base stations in villages, remote areas in cities and towns
Residential areas and buildings FTTH
Security monitoring project
Others occasion which information together with electric power at the same time
Standards of CLOPCC00
Stretching, crushing, impacting, repeated bending, torsion, winding, and loss complies with YD / T 901-2001.
Optical Characteristics of CLOPCC00
| G.652 | 50/125 | 62.5/125 | ||
| Maximum attenuation | @850nm | 3.5dB/km | 3.5dB/km | |
| @1300nm | 1.5dB/km | 1.5dB/km | ||
| @1310nm | 0.45dB/km | |||
| @1550nm | 0.30dB/km | |||
| Typical attenuation | @850nm | 3.0dB/km | 3.0dB/km | |
| @1300nm | 1.0dB/km | 1.0dB/km | ||
| @1310nm | 0.40dB/km | |||
| @1550nm | 0.25dB/km | |||
| Minimum bandwidth | @850nm | 400MHz·km | 160MHz·km | |
| @1300nm | 800MHz·km | 500MHz·km | ||
Technical Parameters of CLOPCC00
| Item | Technical Specifications | Remark | |
| (mm) | Dynamic | 30D | |
| Bending Radius | Static | 20D | |
| (N) | Short Term | 3000 | |
| Tensile Strength | Long Term | 1500 | |
| Short Term | 3000 | ||
| (N/100mm2) | |||
| Crush Resistance | Long Term | 1000 | |
| Operating Temperature range | Electric wire | -15℃～+70℃ | Comply with GB5023-1997 |
| Other materials except electric wire | -40℃～+70℃ | ||
| No water leak if immersed in water for long time | Except | ||
| Water-blocking / Waterproof Performance | wire conductor | ||
| No electric leakage | |||
| Construction Temperature range | -20℃～+60℃ | Except electric wire | |
| 0℃～+60℃ | electric wire | ||
| Weight | 347kg/km （RV-2*2.5mm） | ||
| 382kg/km （RV-4*2.5mm） | |||
| 502kg/km （RV-6*2.5mm） | |||
| 628kg/km （RV-8*2.5mm） | |||
| Mechanical Properties | Stretching, crushing, impacting, repeated bending, torsion, winding and loss comply with YD / T 901-2001 | ||
| Applicable System of Laying | Suitable for pipe, channel, cable trenches, aerial, direct burial and so on | ||
Storage/Operating Temperature : -20℃ to + 60℃
-
