CLMPDC (armpdc)
Description of CLMPDC

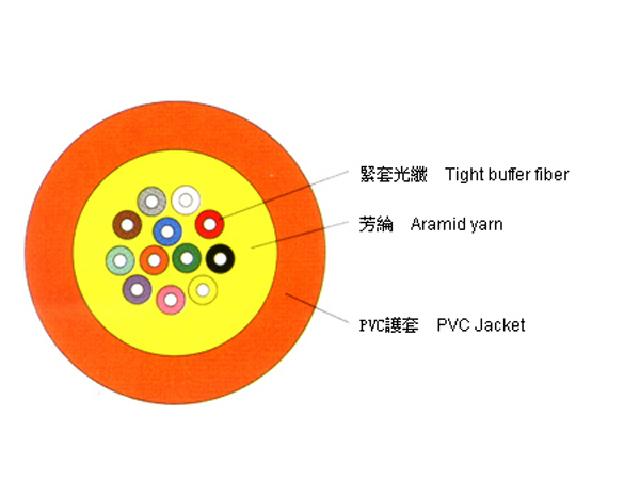

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket.
Standards of CLMPDC
Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.
Cable Code of CLMPDC
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter ( Cable Weight (kg/km) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 5.6±0.25 | 5.8±0.25 | 6.2±0.25 |
| 11.0 | 18.4 | 22 | 24 | 27 | 31 | |
| TBF Diameter | 900±50μm | |||||
Mechanical Characteristics of CLMPDC
| Tensile Strength | Long term | 200N |
| Short term | 660N | |
| Crush Resistance | Long term | 300N/100mm |
| Short term | 1000N/100mm | |
| Bending Radius | Dynamic | 20×D （ Cable Diameter） |
| Static | 10×D （ Cable Diameter） |
Optical Characteristics of CLMPDC
| 50/125μm | 62.5/125μm | G.652 | G.655 | ||
| Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310nm | ≤0.45dB/km | ≤0.50dB/km | |||
| @1550nm | ≤0.30dB/km | ≤0.50dB/km | |||
Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
| -20℃~+85℃)Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.50dB/km | ≤0.50dB/km | ||
| @1550nm | ≤0.20dB/km | ≤0.20dB/km | |||
Environmental Characteristics of CLMPDC
| Transport Temperature | -20℃~+60℃ |
| Storage Temperature | -20℃~+60℃ |
| Installation Temperature | -5℃~+50℃ |
| Operating Temperature | -20℃~+60℃ |
-
