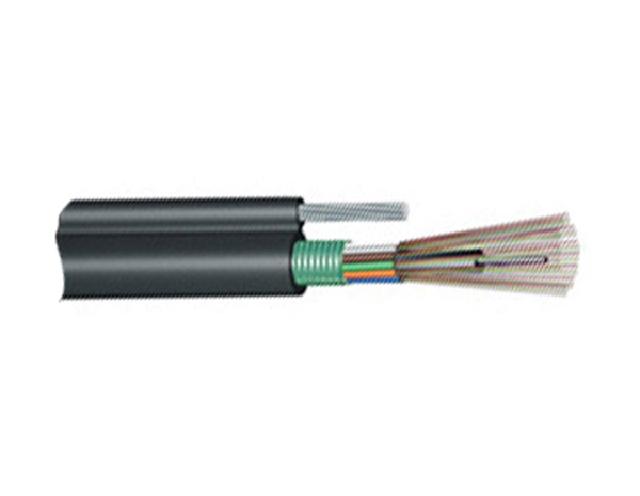

CLGYTC8S (argytc8s)
Description of CLGYTC8S
The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with waterproof compound to ensure compact and longitudinally water blocking, this part of the cable accompanied with the stranded wires as the supporting part is completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics of CLGYTC8S
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
PSP enhancing moisture-proof
Small diameter, light weight and friendly installation
Long delivery length and low price.
Standards of CLGYTC8S
GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
Optical Characteristics of CLGYTC8S
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters of CLGYTC8S
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Supporting Wire Spec | Connection Diameter | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| GYXTC8S | 2~12 | 7.65×14.5 | 118 | Φ1.0mm*7 Stranded wires | Height×Width 3.0×2.5 mm | 1000/2500 | 300/1000 | 80/160 |
| GYXTC8S | 14~24 | 8.2×15.1 | 129 | Φ1.0mm*7 Stranded wires | Height×Width 3.0×2.5 mm | 600/1500 | 300/1000 | 90/180 |
Storage/Operating Temperature : -40℃ to + 60℃
-
