CL2FDC00 (ar2fdc00)

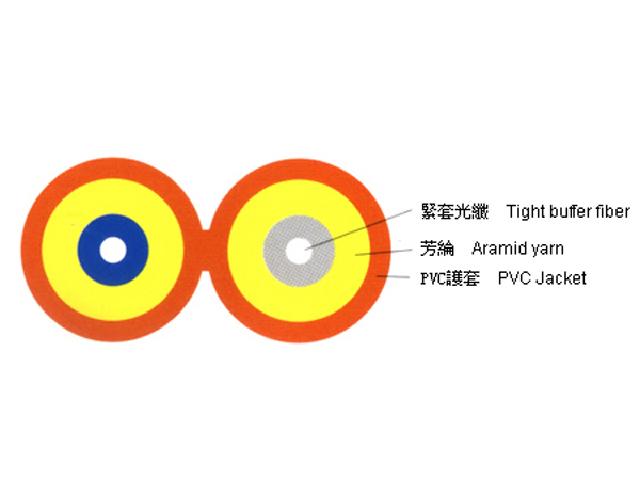

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.Standards:Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.
Description of CL2FDC00
2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.
Standards:
Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.
Cable Code of CL2FDC00
| ZCC-III | ZCC-II | ZCC-I | |
| Cable Diameter (mm) | (6.0±0.4)×(2.8±0.2) | (4.2±0.4)×(2.0±0.2) | (3.4±0.4)×(1.6±0.2) |
| Cable Weight (kg/km) | 15.6 | 10.5 | 7.3 |
| TBF Diameter | 900±50μm | 900±50μm | 600±50μm |
| Tensile Strength | Long term | 100N | 100N |
| Short term | 200N | 200N | |
| Crush Resistance | Long term | 200N/100mm | 100N/100mm |
| Short term | 1000N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20×H （ Cable Axis） | |
| Static | 10×H （Cable Axis） | ||
Mechanical Characteristics of CL2FDC00
| 50/125μm | 62.5/125μm | G.652 | G.655 | ||
| Attenuation(+20℃) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| @1310nm | ≤0.45dB/km | ≤0.50dB/km | |||
| @1550nm | ≤0.30dB/km | ≤0.50dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
| Δα(-20℃~+85℃) Attenuation at temperature cycling Δα(-20℃~+85℃) | @1300nm | ≤0.25dB/km | ≤0.25dB/km | ||
| @1550nm | ≤0.10dB/km | ≤0.15dB/km | |||
Environmental Characteristics of CL2FDC00
| Transport Temperature | -20℃~+60℃ |
| Storage Temperature | -20℃~+60℃ |
| Installation Temperature | -5℃~+50℃ |
| Operating Temperature | -20℃~+60℃ |
-
