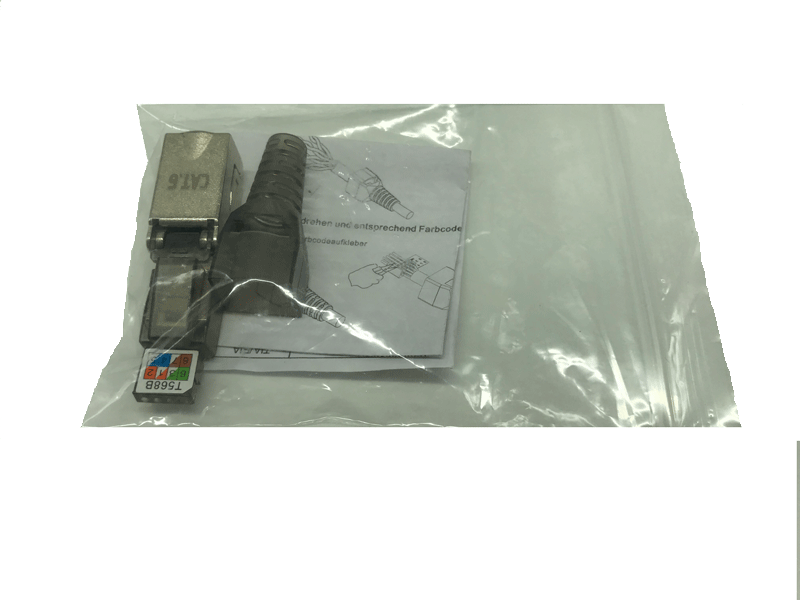

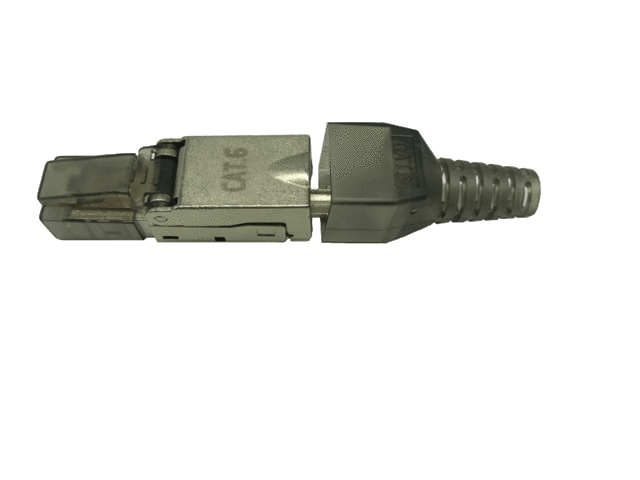

Cat.6 STP RJ45 Field Module Plug (ar-ipf-c6-2)

Details of Field Moduler Plugs ARIPF-C6

Industrial Plug RJ45 Cat.6

Product Detail of Cat.6 STP RJ45 Field Module Plug

CAT6A Class Ea RJ45 plug to be assembled in the field

• UTP&FTP TYPE: 1piece Design

•  Easy Assembly-easily terminated in the field in 2 minutes without any special tools

•  Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm

•  Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm

• Transmission Characteristics: CAT6A per ISO/IEC 11801 Ed.2.2:2011-06

• Compliance with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 GB it Suitable according to IEEE 802.3an

• Suitable for Power over Ethernet (PoE, PoE plus, and UPoE)

• Cable Jacket Diameter from 6 to 9.5 mm

• Adjustable Strain Relief (6mm to 9.5mm Cable OD)

• Load Bar for Faster and Easier Wire Pattern Termination

• Reconnectable

Features of Cat.6 STP RJ45 Field Module Plug

• Operation temperature: -40℃to 60℃，Relative humidity: 85%(30℃)，Air pressure: 70-106Kpa.

• Gold Plated Phosphor Bronze Blade: phosphor bronze and gold plating (3-50uinch), mating durability not less than 750 cycles.

• Anti-bum performance: a product made from Kirsite\PC or PCB(UL94V-0), meeting the international standard

•  Intermediate resistance: no more than 20m ohm in normal atmosphere pressure (not including bulk resistor)

• Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure

• The intensity of anti-currency: DC 1,000V (AC,700V), no puncture and flash-over phenomenon in one minute

•  Retention strength: 7.7kg between jack and plug

• Label: clear label to ensure easy to manage.
