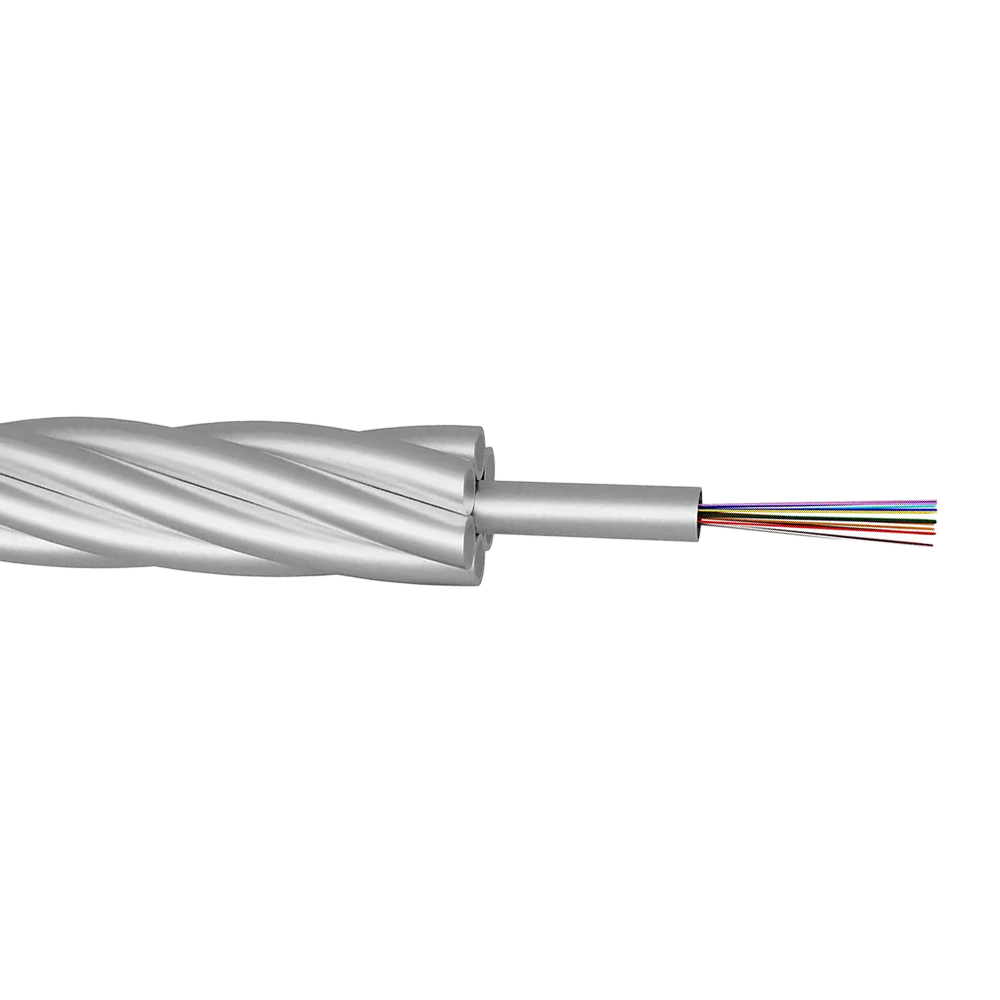

ARMFCO5 OPGW Fiber Cable 24 Core
AROM®, OPGW (Optical Ground Wire) Cable combines overhead ground wire functionality with high-speed fiber optic communication. Designed for robust power line protection and data transmission, the cable is constructed to meet ITU-T G.652D standards. It is ideal for power transmission networks, telecommunications, and smart grid applications
Features & Benefits
✓ High Tensile Strength: Rated tensile strength (RTS) of ≥58.0 kN ensures excellent mechanical performance.
✓ Low Attenuation: • ≤0.35 dB/km @ 1310 nm • ≤0.21 dB/km @ 1550 nm
✓ Corrosion Resistant: Aluminum-clad steel wires provide excellent durability and corrosion resistance.
✓ Lightning Protection: Rated for 50 lightning strikes with high reliability.
✓ Short-Circuit Resistance: • 40°C–200°C): 6.78 kA • Thermal capacity (I²t): ≥11.5 kA²·s
✓ Flexible Installation: Minimum bending radii of 144 mm (working) and 192 mm (operation).
Applications
✓ Power Transmission Lines: Protects overhead power lines and supports optical communication. ✓Telecommunication Networks: Provides a high-speed medium for data transmission over utility infrastructure.
✓ Smart Grid Systems: Facilitates real-time monitoring, control, and communication in power networks. ✓SCADA Systems: Supports Supervisory Control and Data Acquisition for efficient grid management.
Standards
✓ Optical Fiber: ITU-T G.652DISO/IEC 11801 2nd edition (2010)
✓ Cable Design: IEC 60794-4RoHS 2002/95/EC compliant
✓ Electrical Properties: IEEE 1138
✓ Environmental Compliance: RoHS compliant
| Cable Construction | |
|---|---|
| Parameter | Value |
| Fiber Type | Single-Mode (ITU-T G.652D) |
| Number of Fibers | 24 |
| Outer Diameter | 9.6 mm |
| Stranding Configuration | Center Tube: Stainless steel, housing optical fibers. Center Tube: Stainless steel, housing optical fibers. Total Cross-Sectional Area: 48.3 mm² (ACS wires). |
| Weight | ≤345 kg/km |
| Outer Twisted Direction | Right-hand lay |
| Mechanical and Electrical Properties | |
|---|---|
| Outer Diameter | 9.6 mm |
| Weight | ≤345 kg/km |
| Parameter | Value |
| Fiber Count | 24 |
| Fiber Standard | ITU-T G.652D |
| Rated Tensile Strength (RTS) | ≥58.0 kN |
| Elastic Modulus | 162 GPa |
| Linear Expansion Coefficient | 13 × 10-⁶/°C |
| DC Resistance at 20°C | ≤1.82 Ω/km |
| Maximum Allowable Temperature | 200°C |
| Short-Circuit Current (0.25s, 40°C) | 6.78 kA |
| Allowable Short-Circuit Capacity (I²t) | ≥11.5 kA²·s |
| Minimum Bending Radius (Working) | 144 mm |
| Minimum Bending Radius (Operation) | 192 mm |
Temperature Range
Storage Temp. -40°C to +80°C Installation Temp. -10°C to +50°C
| Ordering Information Examples | |
|---|---|
| Part Code | Description |
| OPGW-024-CS2G | OPGW FOC Cable, Single Mode, 24 Core, ACS, SS, Gel Filled |
Compliance with regulations and certifications
