ARMFCO1 Indoor Tight Buffered Fiber Optic Cable
Indoor Tight Buffered Fiber Optic Cable

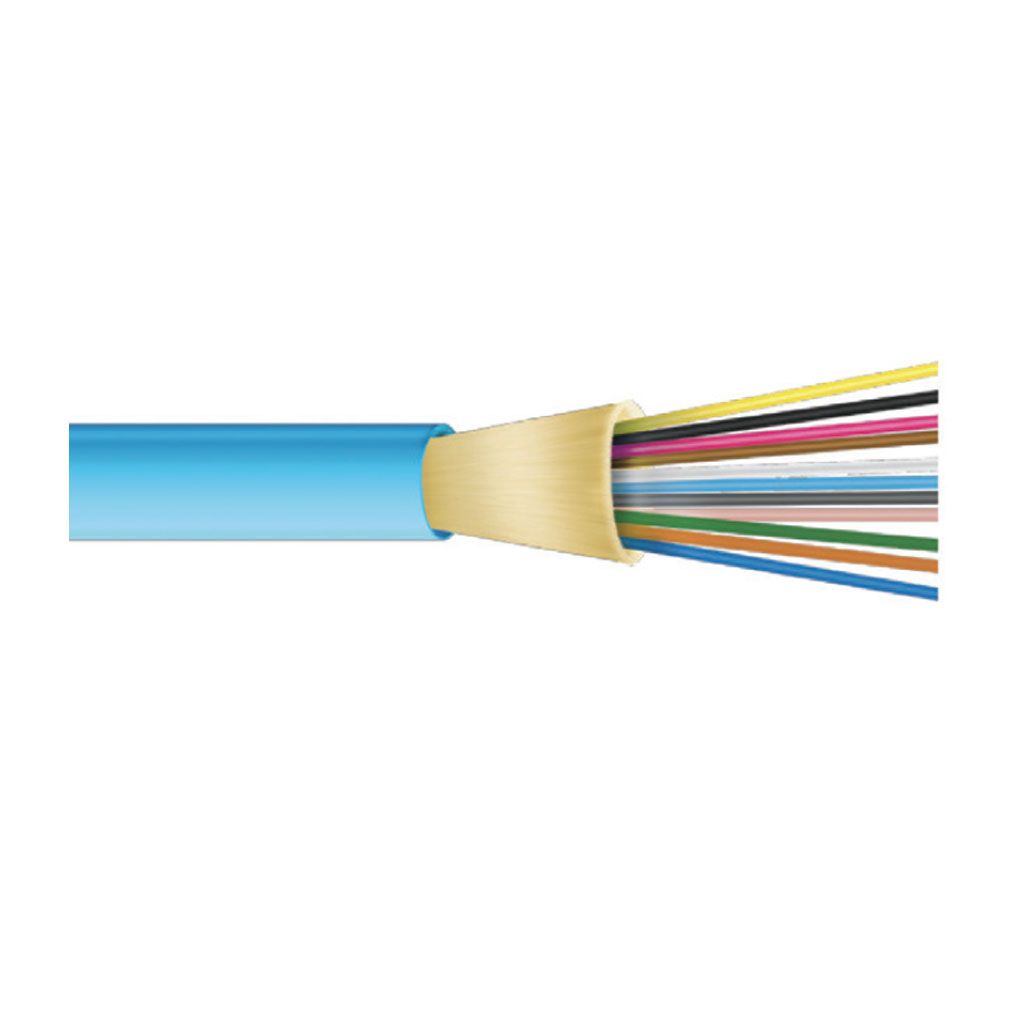

Finosel®, Indoor tight Buffered Internal Distribution Cables are constructed of 900 µm buffered fibers surrounded with aramid Yarn strength members and LSZH, PVC and Plenum outer jacket, this indoor riser Cable designed for horizontal or vertical cable installation in trunking, under floor or ceiling spaces. The cables consist of 2 to 24, 250 µm OM1, OM2, OM3, OM4 multimode or OS1/OS2 (ITU-T G.652D) single mode optical fibers in a 2.95 mm Low Smoke Zero Halogen (LSZH) inner jacket with aramid strength members.
Specifications
Features & Benefits
✓ All dielectric construction.
✓ Minimum installation costs and time.
✓ Easy jacket removal with standard tools.
✓ Rip cord available for easy cable preparation.
✓ Flexible lightweight, easy to handle & install.
Applications
These Indoor tight Buffered cables are specifically designed for indoor applications, mainly used for routing between telecommunications rooms and as a riser cable in multi-story buildings.
| Mechanical & Environmental Characteristics | |
|---|---|
| Fiber Count | 2,4,6,8,12,24 |
| Nominal Diameter (mm) ± 0.3mm | 4.0,5.5,6.0,7.0,7.5,9.5 |
| Nominal Weight (kg/km) ± 10% | 30.0,32.0,35.0,45.0,50.0,80.0 |
| Test | Max. Tensile Strength (N) Bending Radius Crush Resistance (N/100mm) Torsion Temperature Cycling |
| Standard / Notes | IEC-60794-1-21-E1 IEC-60794-1-21-E11 IEC-60794-1-21-E3 IEC-60794-1-21-E7 IEC-60794-1-22-F1 |
| Product Performance | 660 Dynamic = 15D, Static = 20D (D = Cable diameter) 500 ± 180° Installation: -20ºC to +70ºC Operation: 10ºC to +60ºC Storage: -30ºC to +70ºC |
Standards
Complies the Standards IEC.60794, Telecordia GR-20, ANSI/ICEA S-87-640, ITU-T
Classification, IEC 60332-3-22/24 Flame Standards, GR-409, IEC60332-1
Packing and Lengths
Packing: Wooden drums
Lengths (tolerance ±5%): 500, 1000, 2000 mtrs
Note - Customized drum lengths available on request.
Attenuation coefficient, dB/km ( Average / Maximum)
| Fiber Type | OM1 | OM2 | OM3 | OM4 | OS1 |
|---|---|---|---|---|---|
| 850nm | ≤ 3.5 dB/km | ≤ 3.5 dB/km | ≤3.0 dB/km | ≤3.0 dB/km | - |
| 1300nm | ≤ 1.5 dB/km | ≤ 3.5 dB/km | ≤ 3.0 dB/km | ≤ 3.0 dB/km | - |
| 1310nm | - | - | - | - | 1.0 dB/km |
| 1550nm | - | - | - | - | 1.0 dB/km |
